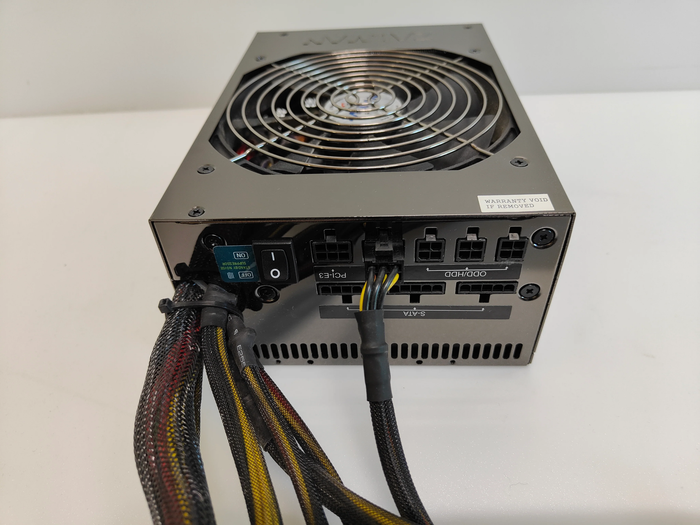

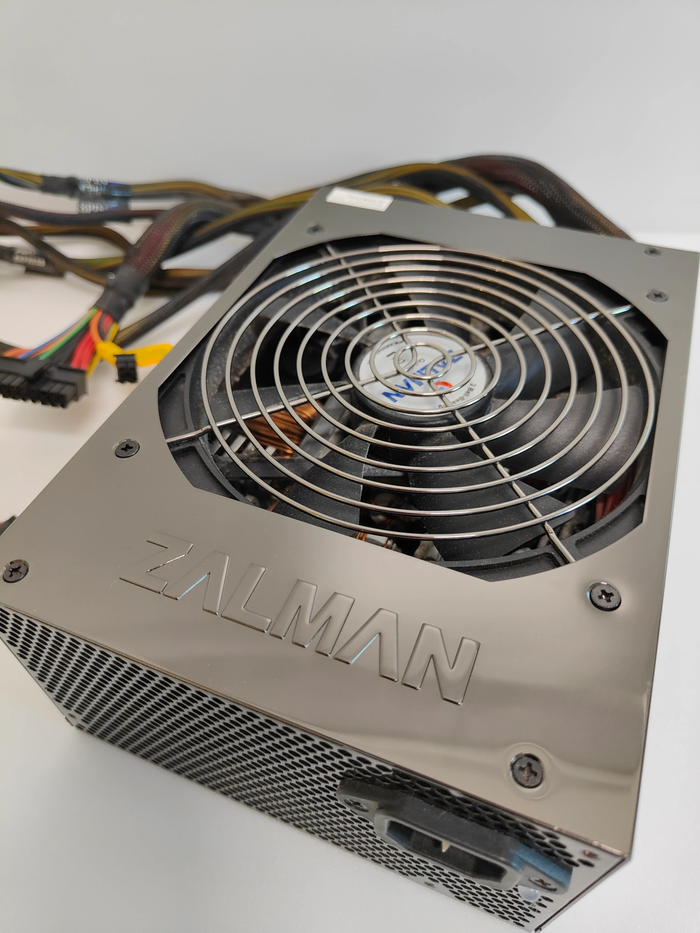

Power Supply Zalman ZM850-HP 850W 80 PLUS Certified

Brand

ZALMAN

Model

ZM850-HP

Details

Maximum Power

850W Continuous @ 45°C
(Maximum Continuous Peak: 1050W)

Fans

1 x Dual Ball-Bearing 140mm Fan

PFC

Active

Main Connector

20+4Pin

+12V Rails

6

PCI-Express Connector

2 x 6-Pin, 2 x 6+2-Pin

SATA Power Connector

12

CrossFire

CrossFire Ready

Modular

Modular

Efficiency

Up to 86% @ 230VAC, Full & Typical Load

Energy-Efficient

80 PLUS Certified

Over Voltage Protection

Yes

Overload Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

50/60 Hz

Input Current

12 - 6.3A

Output

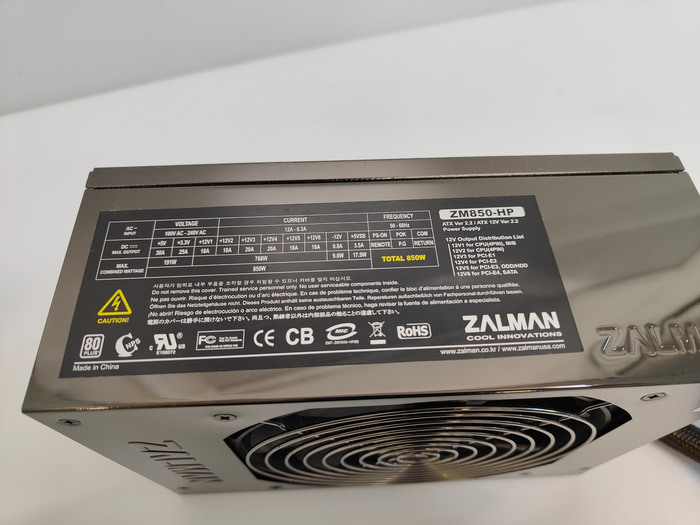

+3.3V@25A, +5V@30A, +12V1@18A, +12V2@18A, +12V3@28A, +12V4@28A, +12V5@18A, +12V6@18A, -12V@0.8A, +5VSB@3.5A

Connectors

1 x Main connector (20+4Pin)
1 x 12V(4/8Pin)
10 x peripheral
12 x SATA
2 x Floppy
4 x PCI-E

Features

Features

NVIDIA HYBRID-SLI Certified - 9800 GX2
NVIDIA QUAD-SLI Certified - Dual 9800 GX2
Ultra Quiet 140mm Fan
Dual Heatpipes: Quiet Operation & Max Cooling
Six Independent +12VDC Outputs
Active PFC: PF Up To 99% & Reduces Distortion
Standby Noise Filter Switch
Sleeved Modular Cables
Gold-Plated Terminals & 16AWG Wires
EZ Grip Connectors for ODDs & HDDs
ATX 20+4Pin Main Connector
ATX12V CPU 4-Pin & EPS12V CPU 8-Pin
2 x PCI Express Power 6Pin
2 x PCI Express Power 6+2Pin
High Efficiency Design - 80 PLUS Certified
Over-Voltage Protection
Over-Current Protection
Short-Circuit Protection
Under-Voltage Protection
Over-Temperature Protection
Complies With WEEE & ROHS

Dimension & Weight

Dimensions

8.3"(L) x 5.9"(W) x 3.4"(H)
